Eigenschaften

Technische Daten

Warranty: 12 months, 12 Months

Customized support: OEM, ODM

Power: Electronic

Capacity: 5,10,20,50,100,200,500,1000,2000,5000KG optional

Accuracy: 0.5% or better

Test Speed: 0.5~1000mm/min(control by keyboard inputing)

Certificate: CE ISO

Controller: PLC control

Material: Stainless steel

Impact Methods: The chamber drops freely

temperature range: -40~+150

Standard: ASTM

Zertifizierung: ISO

Grundinformation

Zertifizierung: CE ISO, ISO

Zahlung und Versand AGB

Packaging Details: Strong Plywood case

Supply Ability: 100 Set/Sets per Month

Produkt-Beschreibung

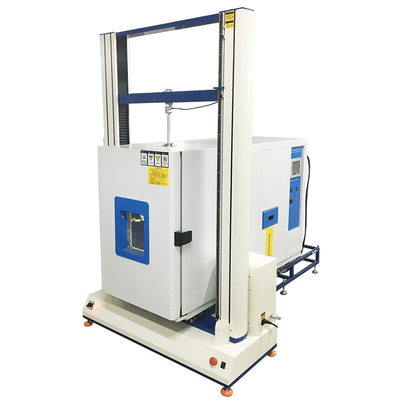

Liyi High Low Tension High Temperature Tensile Testing Machine For Bike Bicycle Performance Test

Product Description

This machine combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by changing environment during test process. Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.

Standard and Test Method:

GB 10586-89, GB/T7750-1987, GB2423.1-89, GB2423.2-89, GJB150.3-86 etc.

Specifications

Capacity	2,5,10,20,50,100,200,500,1000kg
Choosing capacity	3 to 10 times of the most value about the specimen damage
Unit	g,kg,N,KN,LB( switchover free)
Operation method	Windows operation
Resolution	1/250,000
Load Accuracy	± 0.5%
Testing speed	1~500mm/min
Stroke	400,500,600mm(Height can be customed)
Test width	40cm(can be changed by customer needs)
Test space	(L×W×H)40×40×70cm
Motor	Panasonic servo motor
Kind of drive	high-precision ball screw
Dimension	(W×D×H)1200×600×1500mm
Weight	200kg
Power	1φ,220V/50Hz
Rate of work	0.4KW(depend on motor model)
Clamp	customize by customer needs(tensile and compressive clamp)

Temperature control system:

Temperature range	-40°C~150°C
Temperature method	computer P.I.D.automatic control
Stability of control	±1°C
Accuracy of distribution	±1°C
Temperature&humidity control	TATO
Circulatory System	Wind forced circulation
Heating System	SUS#304, stainless steel heater
Humidifying System	Surface evaporation, a transparent structure.
Cooling system	Fan cooling mode, high efficiency of all sealed compressor
Dehumidifying System	Freezing latent heat dehumidification mode
Internal&external material	SUS#304
Inner dimension:	(L×W×H)40×40×70cm can customize

Product Effects

More Options

Company Information

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms:	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency:	USD, EUR, HKD, CNY
Accepted Payment Type:	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port:	Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
